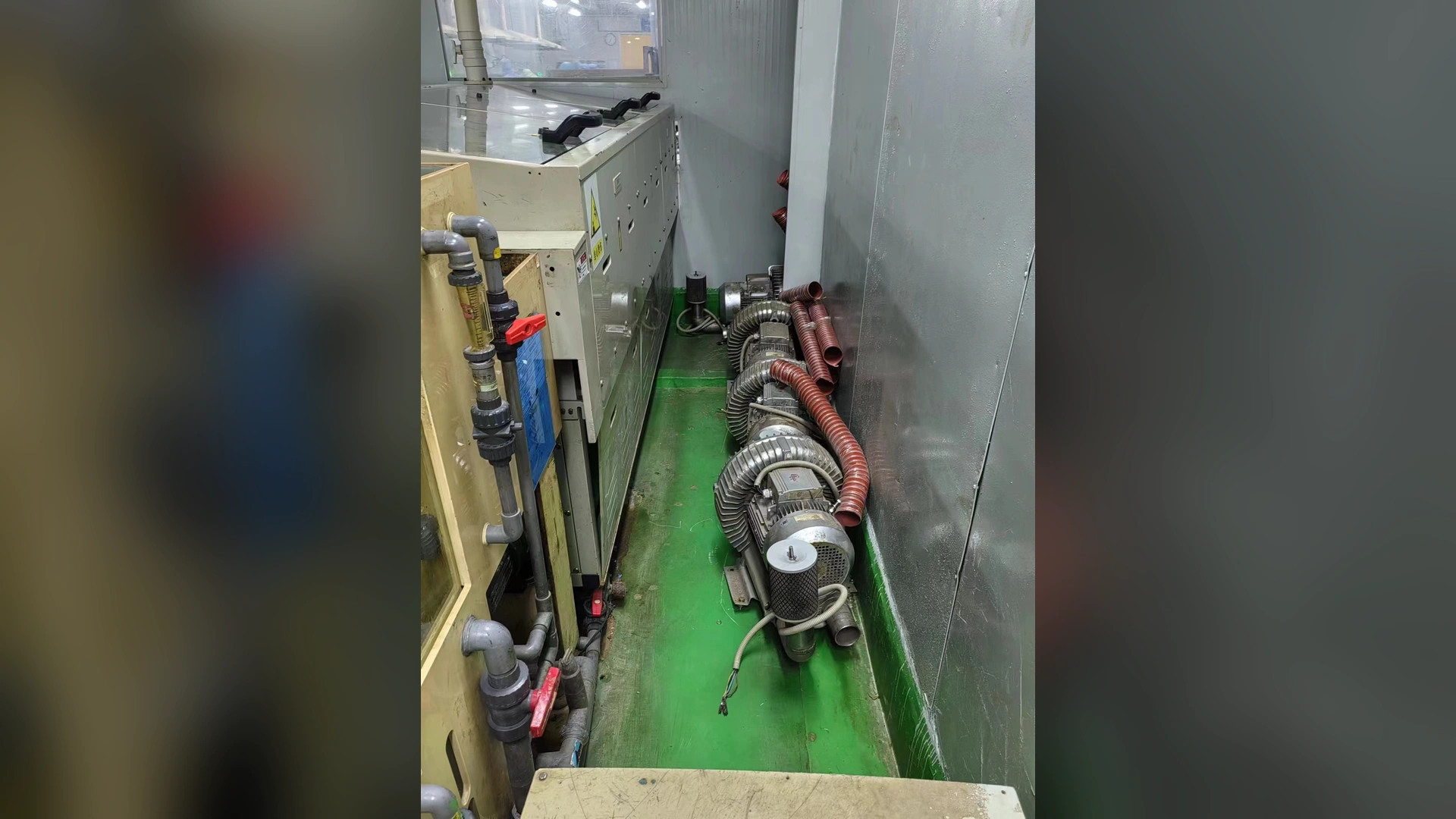

The blower does not choose airflow independently. Actual operation occurs where the blower performance curve intersects the system resistance curve. Understanding that intersection prevents selection by motor power or maximum catalogue values alone.
Quick Answer
System resistance is the combined pressure requirement of the complete inlet, distribution network and process terminal at a specified airflow. For many turbulent-flow air systems with fixed geometry, pressure loss changes approximately with airflow squared. Filters, valve position and terminal behavior can make the real curve more complex.
Plot the system pressure requirement against airflow and compare it with the exact blower P-Q curve. Their intersection is the operating point. Reduce avoidable resistance, or select and control the blower so that this point meets the process efficiently.
Resistance Is Not a Physical Object
System resistance is not one component or a fixed pressure stamped on a pipe. It is the relationship between airflow and the pressure needed to move that air through the complete system.
At zero flow, friction losses may approach zero, although a process can include static lift or pressure requirements that remain. As flow rises, velocity and friction increase.
State the airflow whenever a resistance value is quoted. “The pipe loses 2 kPa” is incomplete without a flow and configuration.
The System Curve
A system curve plots required pressure on the vertical axis against airflow on the horizontal axis. Each point represents the pressure needed for that flow under one fixed configuration.
For a simple turbulent-flow network without significant fixed static pressure, a common approximation is:
Required pressure = K × airflow²
K represents the combined resistance coefficient in consistent units. The relationship is useful for estimating trends, but component behavior and air-density changes can alter the real curve.
The Blower Curve
The blower curve shows the pressure the blower can provide across a range of airflow at a stated speed and air condition.
Maximum airflow and maximum pressure are separate endpoints. Maximum flow is generally near low pressure; maximum pressure is near low flow.
A usable process duty lies between them and must remain inside the manufacturer’s permitted operating region.
The Operating Point
Overlay the blower curve and system curve. The intersection is where available blower pressure equals required system pressure.
If resistance rises, the operating point moves along the blower curve, usually toward a different pressure and lower airflow. If resistance falls, flow may increase and pressure changes accordingly.
Current, power, temperature and sound may also change, depending on blower design.
Inlet Filter Resistance
Even a clean filter creates pressure drop. Dust, oil, moisture and media loading increase it over time.
Use supplier pressure-drop data at design airflow and measure differential pressure under production. Size media area as well as connection diameter.
An automatic pressure controller may hide a loading filter by raising speed. Set a filter warning before all speed margin is consumed.
Inlet Pipe and Silencer
An undersized inlet, abrupt reducer, tight elbow or restrictive silencer adds suction loss before air reaches the blower.
Measure inlet pressure and component differential where practical. Confirm enclosure louvers provide enough free area and do not recirculate hot discharge air.
Include inlet loss in the system curve; do not calculate only the discharge side.
Straight-Pipe Friction
Friction depends on length, internal diameter, airflow, roughness and air properties. Longer, smaller pipe generally creates greater loss.
Use actual internal bore, not nominal size. Hose reinforcement, liners and fittings can reduce the passage.
Calculate each section at its own airflow, especially in a branched network.
Elbows, Tees and Reducers
Fittings change flow direction or area and create local loss. Tight elbows and abrupt transitions are usually more restrictive than gradual, long-radius arrangements.
Several fittings close together can produce a disturbed profile. Equivalent-length or loss-coefficient methods are useful when applied consistently.
Measure across suspicious sections during commissioning to validate estimates.
Valves and Dampers
A valve intentionally adds or removes resistance. Closing it moves the system curve upward and can reduce airflow while raising upstream static pressure.
Valves are useful for isolation and branch balance, but heavy permanent throttling represents pressure that performs no process work.
Compare speed control or a better blower match when a valve remains nearly closed in every normal mode.
Flexible Hose
Corrugated hose can create more loss than smooth pipe of a similar nominal diameter. Tight bends, kinks, collapse or internal delamination make resistance worse.
Use flexible connectors only as long as needed for isolation and alignment. Support rigid pipe independently so it does not strain the blower.
Inspect hose during maintenance because damage can change the system curve suddenly.
Branches and Parallel Paths
Air divides according to branch resistance. A short, large branch takes more flow than a long or restricted branch at the same header pressure.
Opening another branch changes total system resistance and moves the central blower operating point. The pressure available to existing users may fall.
Model credible branch combinations and balance the physical layout before relying on throttling.
Air Knives and Nozzles
Terminal openings often dominate the resistance. Air knife slot length and gap determine total area, while internal manifold geometry affects distribution.
A narrower gap raises resistance; a wider gap increases flow demand for a given plenum condition. Contamination or damage changes the behavior.
Treat the terminal as a separate item in the pressure budget and verify process quality, not only gauge pressure.
Aeration Diffusers and Process Depth
In aeration, the blower must overcome water depth, diffuser resistance, pipe loss and control valves. Water depth creates a static pressure requirement that does not follow the same simple airflow-squared relationship as friction.
Diffuser fouling increases resistance over time. Changing the number of active diffusers changes branch demand.
Include minimum and maximum liquid level and clean and fouled conditions in the system curve review.
Leaks Alter the System Curve
A leak acts as another flow path. It can reduce header pressure and useful delivery while increasing total blower airflow.
Repair leaks and repeat measurements. The new operating point may change current, power and process balance.
Do not mistake total flow through leaks for productive airflow.
Air Density
Pressure loss and blower performance depend on air density, which changes with temperature, altitude and absolute pressure.
Use consistent reference conditions when comparing factory curves with site measurements. Hot or high-altitude air may require correction.
For a critical design, obtain the manufacturer’s method rather than applying a rough correction without review.
How to Build a System Curve
- Draw the complete inlet and discharge network.
- Define process airflow and pressure at each user.
- Calculate straight-pipe loss by section.
- Add fittings, valves, filters and silencers.
- Add terminal and any fixed static-pressure requirement.
- Repeat the calculation at several airflow values.
- Plot pressure against airflow.
- Compare the curve with the proposed blower curves.
- Check clean, loaded and branch-change configurations.
- Validate with commissioning measurements.
Keep assumptions, units and component data with the calculation.
How Maintenance Changes Resistance
A dirty filter, clogged air knife, fouled diffuser, collapsed hose or mispositioned valve raises or redistributes resistance. A leak or broken terminal can lower resistance while damaging useful pressure.
Trend section pressure drops and compare with the clean baseline. Do not wait until total airflow falls enough to stop production.
After maintenance, record the restored point and verify the process.
Applying Towwind Product Data
System resistance must be compared with the selected blower’s released pressure-airflow curve at each required mode. Catalogue maximum-flow and maximum-pressure endpoints are separate and do not establish the installed operating point.
These endpoints do not occur together. The system curve determines where each selected blower will operate.
Where a delivered controller supports variable output, its usable range can follow changing demand only within approved electrical, thermal and process limits. Confirm the exact model documentation and commissioning results.
Energy Implications
Avoidable resistance forces the blower to create pressure that does not perform useful process work. Reducing it may permit lower speed or a smaller correctly selected blower.
Measure real power before and after at equivalent process output. A lower-resistance system can also increase flow, so controls may need to be reset to capture the saving.
Any energy reduction depends on the old unit, system resistance, accepted duty, controls and annual hours. Compare measured real input at equivalent process output rather than applying a general product percentage.
What Buyers Should Request
Provide process duties, pipe layout, internal diameters, lengths, fittings, valves, branches, filter data, terminal information, air conditions, operating modes and measured existing readings.
Ask the supplier to show the proposed operating points on the exact P-Q curve and state the assumed system losses.
A recommendation based only on motor power or maximum airflow does not account for system resistance.
Conclusion
System resistance is the pressure required to move a given airflow through the complete air path. It changes with flow, geometry, valve position, contamination, branch configuration and process terminals.
The intersection of the system curve and blower curve determines real operation. By calculating and measuring that relationship, engineers can select the right blower, diagnose changes and reduce pressure losses that add cost without improving the process.
Frequently Asked Questions
Does system resistance stay constant?
No. It changes with airflow, valve and branch positions, filter loading, terminal condition, air density and process configuration.
Why does pressure loss often rise with airflow squared?
In many turbulent-flow systems with fixed geometry, velocity-related losses vary approximately with velocity squared, and velocity follows airflow.
Can a larger blower overcome high resistance?
It may force more air through the system, but avoidable restrictions remain an energy penalty. Diagnose and correct them first.
How does opening another branch affect the operating point?
It changes total system resistance and demand, often increasing total flow and changing header pressure and distribution.
What information is needed to draw a system curve?
Use airflow requirements, pipe dimensions, lengths, fittings, valves, filters, branches, terminal losses, fixed static pressure and air conditions.
