Confusing these values can lead to an incorrect system-loss calculation, misleading gauge comparison or poorly selected blower. Every pressure value should state what was measured, where it was measured and under which airflow condition.
Quick Answer
Static pressure is measured with a wall tap oriented so it does not face directly into the flow. Dynamic or velocity pressure is derived from the difference between total and static pressure. A Pitot-static tube can measure both at a suitable duct location.
Use static pressure for many system resistance and process-pressure discussions, dynamic pressure to relate velocity and density, and total pressure when accounting for both. Always follow the test standard, instrument instructions and blower supplier’s curve definition.
What Is Static Pressure?
Static pressure is the pressure the moving air exerts independently of its forward velocity direction. In a duct, an appropriate static tap senses pressure through an opening in the wall without intentionally capturing the velocity head.
Static pressure can be positive on a blower discharge and negative relative to atmosphere on a suction line. The sign depends on the reference.
A static gauge reading alone does not show airflow. A closed outlet may create high static pressure while delivering almost no useful flow.
What Is Dynamic Pressure?
Dynamic pressure, often called velocity pressure in duct measurements, represents kinetic energy per unit volume associated with air velocity.
For incompressible low-speed approximation:
Dynamic pressure = 0.5 × air density × velocity²
Velocity is therefore related to the square root of dynamic pressure divided by density. Air density changes with temperature, altitude and pressure, so conversion requires defined conditions.
Dynamic pressure is directional and cannot be read correctly from an ordinary wall static tap.
What Is Total Pressure?
Total pressure is the sum of static and dynamic pressure at a point under the applicable flow assumptions:
Total pressure = static pressure + dynamic pressure
A tube facing into the airflow can sense total or stagnation pressure. A Pitot-static instrument uses total and static ports to obtain velocity pressure.
Total pressure represents the air’s combined static and kinetic energy. Loss through a system can be compared using total pressure when measurement methods are consistent.
Gauge, Absolute and Differential Pressure
Gauge pressure is referenced to local atmosphere. Absolute pressure is referenced to vacuum. Differential pressure compares two points.
Blower system instruments often report gauge or differential values. Air-density calculations may require absolute pressure and temperature.
Label every value and unit. “8 kPa pressure” is incomplete if the reference, type and location are unknown.
Why a Wall Gauge Does Not Measure Velocity Pressure
A properly installed wall tap is designed to avoid facing the flow, so it senses static pressure. It does not capture the air’s forward kinetic energy.
If the tap protrudes, contains burrs or sits in turbulent flow, the reading may be biased. A tube pointing into flow measures a different quantity.
Do not compare readings from different probe types as if they were interchangeable.

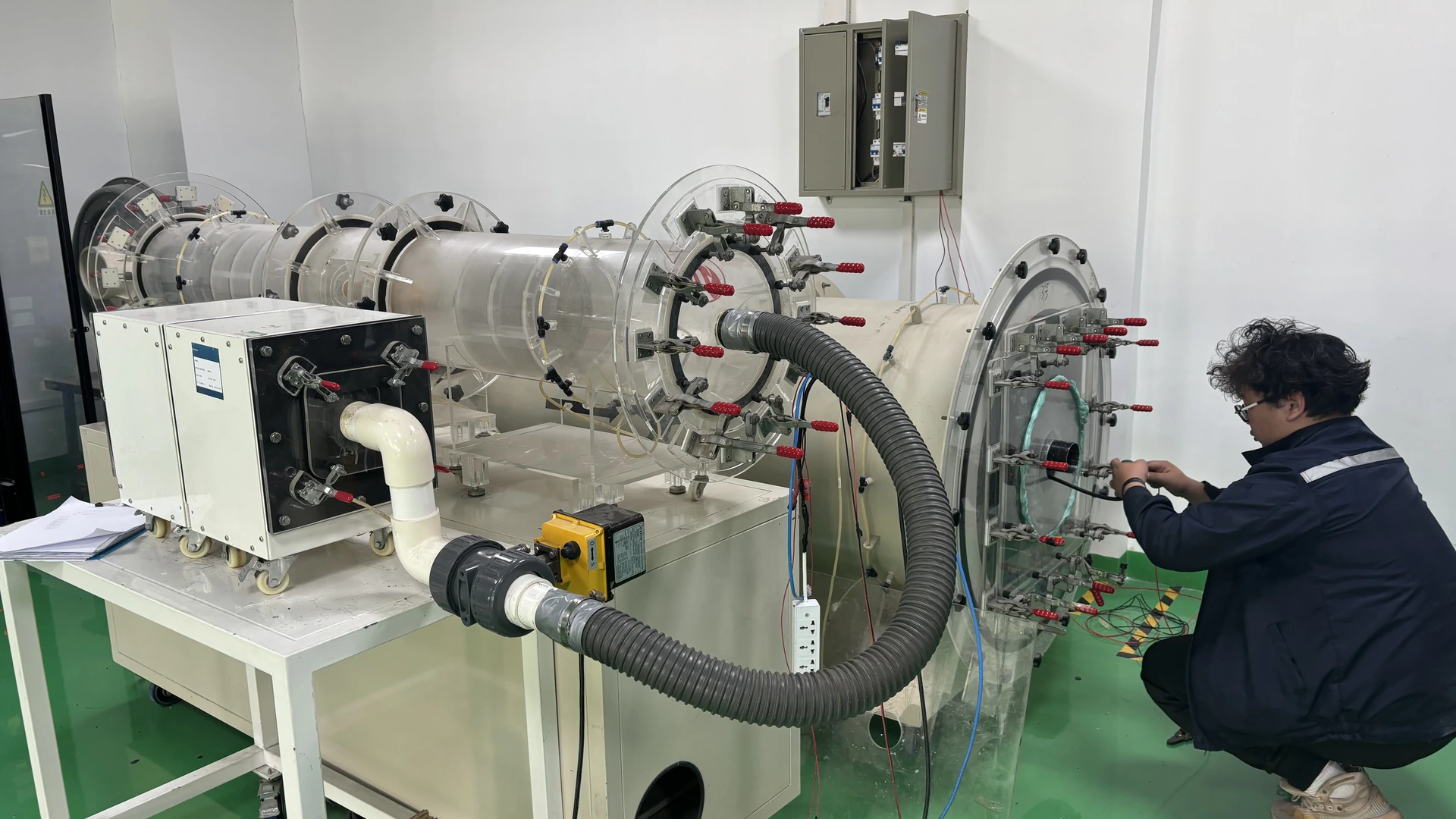

Using a Pitot-Static Tube
A Pitot-static tube has a forward-facing total-pressure port and side static ports. The differential between them is velocity pressure.
For reliable duct airflow, use a suitable straight section and traverse multiple points because velocity is rarely uniform across the area. Follow the applicable test method and instrument limits.
Very low velocity pressure can be difficult to measure accurately, while strong turbulence or swirl can distort the probe response.
Pressure at the Blower Outlet
The outlet flow may be highly nonuniform and turbulent near the blower connection. A reading taken directly after an elbow or reducer can differ from one in a developed straight section.
Use manufacturer-recommended measurement locations where available. Document distance from fittings and probe orientation.
If a supplier’s curve uses static pressure, total pressure or another reference, use the same definition when comparing site measurements.
Pressure at an Air Knife
An air knife plenum is commonly discussed in terms of static pressure because the plenum supplies a slot. At the slot exit, pressure energy converts largely into velocity.
Measuring velocity outside the slot is not the same as measuring plenum pressure. Probe distance, angle, slot uniformity and entrained surrounding air affect the velocity reading.
Record both quantities when diagnosing drying performance, along with line speed and process result.
Static Pressure Does Not Equal Useful Process Force
A high static reading can occur upstream of a restriction while the process receives little airflow. Conversely, a low static reading in a large, low-loss duct can accompany substantial flow.
The process may depend on air momentum, surface coverage, residence time or diffuser behavior rather than one pressure value.
Specify the required process result and simultaneous airflow-pressure condition.
Dynamic Pressure and Pipe Diameter
For a given volumetric airflow, reducing pipe area raises average velocity. Because dynamic pressure varies with velocity squared, it increases strongly as diameter becomes smaller.
Higher velocity also tends to increase friction and fitting loss. This is why an undersized pipe can consume pressure and create noise.
Use actual internal diameter and calculate every section according to the flow it carries.
Total Pressure Loss Through a System
Total pressure decreases through filters, pipe, bends, valves and terminals because mechanical energy is dissipated. A blower adds pressure, while the system consumes it.
Create a pressure budget at the design airflow. Separate useful terminal pressure from distribution loss.
When comparing two stations with different velocity, total pressure provides a more complete energy view than static pressure alone, provided measurements are valid.
Compressibility and Higher Pressure
The simple relationships above are most straightforward when density changes are small. At higher pressure ratios or speeds, compressibility and temperature effects may require more detailed methods.
Do not apply an incompressible formula beyond its suitable range without engineering review. Use the blower manufacturer’s stated reference conditions and correction method.
For Towwind’s low-pressure industrial range, buyers should still confirm how curve airflow and pressure are defined.
Common Measurement Errors
Frequent errors include:
- calling every gauge reading “blower pressure”;
- placing a static tap directly after a fitting;
- pointing a pressure tube in the wrong direction;
- using one centreline velocity as the duct average;
- ignoring air density and temperature;
- mixing Pa, kPa, mbar, mmH2O and other units;
- comparing gauge and absolute values; and
- taking readings with a different branch or valve configuration.
Record the complete measurement setup so another engineer can reproduce it.
Applying Pressure Data to Blower Selection
First define the process airflow and required pressure at a named point. Add inlet and distribution losses using consistent pressure definitions.
Then compare the required point with the exact manufacturer curve. Maximum airflow and maximum pressure are separate endpoints and cannot normally occur together.
Do not add static and total pressure values from different sources. Align the reference basis before calculation.
Applying Towwind Product Data
For a Towwind proposal, define whether each pressure value is static, dynamic, total or differential and where it is measured. Compare the required airflow and pressure on the exact model’s released curve; separate catalogue endpoints cannot be combined into one duty point.
These are separate curve endpoints. The final specification and curve should be checked for the pressure definition, reference air condition and exact duty.
Confirm the delivered variant’s electrical supply and usable controller range from its final nameplate and manual. Use the same pressure definitions in the supplier test and site acceptance plan.
Diagnose Pressure and Flow Together
When process pressure falls, record static pressure at several points, airflow, speed, current, power, temperature, valve positions and filter condition.
A large static-pressure drop across one component identifies resistance. A high blower-outlet static reading with low terminal performance can indicate piping or terminal restriction.
A low reading everywhere may point toward speed, inlet, supply, leak, selection or measurement issues.
Energy Implications
Creating pressure that is lost across a throttle or undersized pipe consumes energy without useful process work. Reducing avoidable loss may allow lower speed or a better operating point.
Measure real input at equivalent process output. Nameplate motor power is not a consumption reading.
Energy may change when the system resistance or control method changes, but the result depends on the required duty and annual hours. Verify it from measured real input at equivalent accepted process output.
A Practical Pressure-Measurement Record
For each reading, save:
- static, dynamic or total pressure type;
- gauge, absolute or differential reference;
- units and instrument range;
- exact location and probe orientation;
- airflow or velocity method;
- air temperature and relevant density basis;
- blower speed and electrical input;
- valve, branch and filter condition; and
- product, line speed and process result.
This record prevents future teams from comparing values that describe different quantities.
Conclusion
Static pressure describes the non-directional pressure component, dynamic pressure represents velocity-related energy and total pressure combines both. Each has a valid role, but none should be used without a clear measurement method and location.
Use static, dynamic and total pressure consistently in system calculations and supplier comparisons. When pressure is paired with airflow and process performance, blower selection and troubleshooting become far more reliable.
Frequently Asked Questions
Is blower pressure usually static or total pressure?
It depends on the manufacturer’s curve and test method. Confirm the definition before comparing it with a site gauge.
Can a pressure gauge measure airflow?
Not directly from ordinary static pressure. Airflow may be derived from velocity pressure with density, duct area and a valid measurement method.
Why is pressure high when airflow is low?
A restriction or closed outlet can raise upstream static pressure while reducing airflow. Measure across system sections to locate the loss.
What does a Pitot-static tube measure?
It senses total and static pressure. Their difference is velocity pressure, which can be used to estimate velocity under appropriate conditions.
Should pressure be measured directly at the blower outlet?
Only if the manufacturer’s method supports that point. Turbulence near the outlet may require a specified straight section or alternative tapping location.
